🔖 MdPreview Props

This is the props of MdPreview, which is also part of MdEditor:

📃 value

• type: string

• default: ''

  Markdown content.

  jsx Copy

  <MdEditor value="xxx" />

📃 modelValue

• type: string

• default: ''

  Deprecated. Starting from version 5.x, Replace with value.

🛍 theme

• type: 'light' | 'dark'

• default: 'light'

  Editor's theme.

  jsx Copy

  <MdEditor theme="dark" />

🎀 className

• type: string

• default: ''

  ...

🔤 language

• type: string

• default: 'zh-CN'

  Build-in language('zh-CN', 'en-US').

  You can install the existing language also: md-editor-extension. Refer to extension library for the usage and the way to contribute~

🎲 editorId

• type: string

• default: undefined (generated automatically when omitted)

  Deprecated. Starting from version 5.x, Replace with id.

  Unique identifier of the editor, use the default prefix and useId for concatenation. When using server-side rendering, make sure to set this attribute to a constant value., Starting from version 5.0, there is no such limitation.

🎲 id

• type: string

• default: undefined (generated automatically when omitted)

  Unique identifier of the editor, use the default prefix and useId for concatenation.

🔢 showCodeRowNumber

• type: boolean

• default: true

  Code block line numbers are shown by default. Set this prop to false when initializing the component to hide them; runtime changes are not observed. Code-fence line highlighting, available starting with v7.x, works independently.

🔦 previewTheme

• type: string

• default: 'default'

  Preview theme. Built-in values are default, github, vuepress, mk-cute, smart-blue, and cyanosis; custom theme names are also supported.

  Custom:

  1. Write css
  css Copy

  .xxx-theme {
    color: red;
  }

  2. Set previewTheme
  jsx Copy

  <MdEditor previewTheme="xxx" />

  For more, refer to markdown-theme.

🎅🏻 style

• type: CSSProperties

• default: {}

  Editor inline style.

☝️ noMermaid

• type: boolean

• default: false

  do not want to use mermaid, set it to true.

  jsx Copy

  <MdEditor noMermaid />

❌ noKatex

• type: boolean

• default: false

  Do not want to use katex, set it to true.

🦉 codeTheme

• type: string

• default: 'atom'

  Code highlighting theme name. Built-in values are atom, a11y, github, gradient, kimbie, paraiso, qtcreator, and stackoverflow; custom names are also supported.

  Custom:

  1. Config editorExtensions
  js Copy

  import { config } from 'md-editor-rt';

  config({
    editorExtensions: {
      highlight: {
        css: {
          atom: {
            light: 'https://cdnjs.cloudflare.com/ajax/libs/highlight.js/11.5.1/styles/atom-one-light.min.css',
            dark: 'https://cdnjs.cloudflare.com/ajax/libs/highlight.js/11.5.1/styles/atom-one-dark.min.css'
          },
          xxx: {
            light: 'https://cdnjs.cloudflare.com/ajax/libs/highlight.js/11.5.1/styles/xxx-light.css',
            dark: 'https://cdnjs.cloudflare.com/ajax/libs/highlight.js/11.5.1/styles/xxx-dark.css'
          }
        }
      }
    }
  });

  2. Set codeTheme
  jsx Copy

  <MdEditor codeTheme="xxx" />

🎱 mdHeadingId

• type: MdHeadingId

• default: ({ text }) => text

  Title ID generator.

  jsx Copy

  import { MdEditor } from 'md-editor-rt';
  import 'md-editor-rt/lib/style.css';

  const mdHeadingId = ({ index }) => `heading-${index}`;

  export default () => {
    return <MdEditor mdHeadingId={mdHeadingId} />;
  };

  ts Copy

  type MdHeadingId = (options: {
    text: string;
    level: number;
    index: number;
    currentToken?: Token;
    nextToken?: Token;
  }) => string;

🐣 sanitize

• type: (html: string) => string

• default: (html) => html

  This attribute is used to alter the compiled HTML content.

  The default html: false setting treats raw HTML in Markdown as text but does not sanitize HTML generated by plugins. Use this prop to sanitize the final output when needed. XSSPlugin, exported separately since v5 and disabled by default, processes HTML tokens rather than sanitizing the final output. Refer to Modify XSS configuration.

  sanitize-html example:

  jsx Copy

  import sanitizeHtml from 'sanitize-html';
  import { MdEditor } from 'md-editor-rt';
  import 'md-editor-rt/lib/style.css';

  const sanitize = (html) => sanitizeHtml(html);

  export default () => {
    return <MdEditor sanitize={sanitize} />;
  };

💅 formatCopiedText

• type: (text: string) => string

• default: (text) => text

  Format copied code

  jsx Copy

  import { MdEditor } from 'md-editor-rt';
  import 'md-editor-rt/lib/style.css';

  export default () => {
    const formatCopiedText = (text: string) => {
      return `${text}  - from md-editor-rt`;
    };

    return <MdEditor formatCopiedText={formatCopiedText} />;
  };

🛁 codeStyleReverse

• type: boolean

• default: true

  Code style will be reversed to dark while code block of the theme has a dark background.

🧼 codeStyleReverseList

• type: Array<string>

• default: ['default', 'mk-cute']

  Themes to be reversed.

🕊 noHighlight

• type: boolean

• default: false

  never highlight code

🕊 noImgZoomIn

• type: boolean

• default: false

  Enable the function of enlarging images.

  html Copy

  <MdEditor noImgZoomIn />

  After version 4.15.4, it is also possible to disable zooming by setting the class .not-zoom.

  Using the following <img> tag directly in Markdown requires enabling html: true through markdownItConfig.

  markdown Copy

  <img class="not-zoom">

😬 customIcon

• type: CustomIcon

• default: {}

  Customized icons

  Type Warning

  The icons for copy, collapse-tips, pin, pin-off, and check can only be strings. Other icons can be components or strings.

  tsx Copy

  import React from 'react';
  import type { CustomIcon } from 'md-editor-rt';
  import { MdEditor, StrIcon } from 'md-editor-rt';
  // Assuming you have installed an icon library or customized icon components
  import { IconFont } from 'tdesign-icons-react';
  import 'md-editor-rt/lib/style.css';

  const customIcon: CustomIcon = {
    bold: {
      component: 'A'
    },
    // Demonstrating the use of default icons
    copy: StrIcon('copy', {}),
    // copy: '<i class="fa fa-car"></i>',
    // 'collapse-tips': '<i class="fa fa-car"></i>',
    preview: {
      component: '<i class="fa fa-car"></i>'
    },
    github: {
      component: IconFont,
      props: {
        name: 'sneer'
      }
    }
  };

  export default () => {
    return <MdEditor value="" customIcon={customIcon} />;
  };

  Type CustomIcon

  ts Copy

  type IconName =
    | 'bold'
    | 'underline'
    | 'italic'
    | 'strike-through'
    | 'title'
    | 'sub'
    | 'sup'
    | 'quote'
    | 'unordered-list'
    | 'ordered-list'
    | 'task'
    | 'code-row'
    | 'code'
    | 'link'
    | 'image'
    | 'table'
    | 'revoke'
    | 'next'
    | 'save'
    | 'prettier'
    | 'minimize'
    | 'maximize'
    | 'fullscreen-exit'
    | 'fullscreen'
    | 'preview-only'
    | 'preview'
    | 'preview-html'
    | 'catalog'
    | 'github'
    | 'mermaid'
    | 'formula'
    | 'close'
    | 'delete'
    | 'upload';

  type CustomIcon = {
    [key in IconName]?: {
      component: Component | JSX.Element | string;
      props?: {
        [key: string | number | symbol]: any;
      };
    };
  } & {
    copy?: string;
    'collapse-tips'?: string;
    pin?: string;
    'pin-off'?: string;
    check?: string;
  };

🕊 sanitizeMermaid

• type: (h: string) => Promise<string>

• default: (h: string) => Promise.resolve(h)

  Convert the generated mermaid code

🕹 codeFoldable

• type: boolean

• default: true

  Whether to enable code folding feature

⏲ autoFoldThreshold

• type: number

• default: 30

  Threshold for triggering automatic code folding by line count

🖌 noEcharts

• type: boolean

• default: false

  >=6.0.0 Disable echarts preview

🎨 previewComponent

• type: PreviewRendererComponent
• default: undefined

To take full control of preview rendering, provide a custom component through previewComponent. It receives html, id, and className; apply id and className to the container element to preserve the built-in styles and behavior.

import { MdEditor } from 'md-editor-rt';
const CustomPreview = ({ html, id, className }) => {
  return <div id={id} className={className} dangerouslySetInnerHTML={{ __html: html }} />;
};
export default () => {
  return <MdEditor previewComponent={CustomPreview} />;
};

🔩 MdEditor Props

Except for the same as MdPreview:

💻 pageFullscreen

• type: boolean

• default: false

  Screenfull in web page.

📱 preview

• type: boolean

• default: true

  Preview content in editor.

📀 htmlPreview

• type: boolean

• default: false

  Preview html in editor. Set preview to false when htmlPreview is true.

🧱 toolbars

• type: Array<ToolbarNames>

• default: [all]

  Show contents of toolbar.

  You can sort the toolbar as you like, split tools by '-', the left and right toolbars are divided by '='!

  [all]

  js Copy

  [
    'bold',
    'underline',
    'italic',
    'strikeThrough',
    '-',
    'title',
    'sub',
    'sup',
    'quote',
    'unorderedList',
    'orderedList',
    'task',
    '-',
    'codeRow',
    'code',
    'link',
    'image',
    'table',
    'mermaid',
    'katex',
    '-',
    'revoke',
    'next',
    'save',
    '=',
    'prettier',
    'pageFullscreen',
    'fullscreen',
    'preview',
    'previewOnly',
    'htmlPreview',
    'catalog',
    'github'
  ];

🧱 toolbarsExclude

• type: Array<ToolbarNames>

• default: []

  Don't show some item of toolbars, all keys.

🧱 floatingToolbars

• type: Array<ToolbarNames>

• default: []

  Show contents of floating toolbar.

  You can sort the toolbar as you like, split tools by '-'.

💪 defToolbars

• type: Array<ReactElement>

• default: []

  Custom toolbar in DropdownToolbar, NormalToolbar or ModalToolbar. To display them, put index of defToolbars into toolbars(this is not standard).

  jsx Copy

  import { MdEditor, NormalToolbar } from 'md-editor-rt';
  import 'md-editor-rt/lib/style.css';

  const handler = () => {
    console.log('NormalToolbar clicked!');
  };

  const toolbars = ['github', '=', 0];

  const defToolbars = [
    <NormalToolbar
      title="mark"
      onClick={handler}
      trigger={
        <svg className="md-editor-icon" aria-hidden="true">
          <use xlinkHref="#icon-mark"></use>
        </svg>
      }
    />
  ];

  export default () => {
    return <MdEditor value="" toolbars={toolbars} defToolbars={defToolbars} />;
  };

For more info, click Internal Components. Get source code of mark, emoji and modal preview at md-editor-extension branch.

🪒 noPrettier

• type: boolean

• default: false

  Disable Prettier formatting for Markdown content. Set it to true to disable Prettier.

🤏 tabWidth

• type: number

• default: 2

  One tab eq some space.

📅 tableShape

• type: [number, number] \| [number, number, number, number]

• default: [6, 4]

  Preset the size of the table, [columns, rows, Maximum number of columns, Maximum number of rows]

  jsx Copy

  const tableShape = [8, 4];

  () => <MdEditor tableShape={tableShape}>



🪧 placeholder

• type: string

• default: ''

  em-_-!

🦶 footers

• type: Array<'markdownTotal' \| '=' \| 'scrollSwitch' \| number>

• default: ['markdownTotal', '=', 'scrollSwitch']

  Show contents of footer, they are divided by '='. Set it to [] to hidden footer.

🦿 defFooters

• type: Array<string | ReactElement>

• default: []

  Custom footer.

  Get example code.

⛵️ scrollAuto

• type: boolean

• default: true

  Scroll default setting.

🥹 noUploadImg

• type: boolean

• default: false

  Not show the entrance to upload pictures

  jsx Copy

  import { MdEditor } from 'md-editor-rt';
  import 'md-editor-rt/lib/style.css';

  export default () => {
    return <MdEditor noUploadImg />;
  };

🔬 autoFocus

• type: boolean

• default: false

  Same as autofocus in native textarea.

🔩 disabled

• type: boolean

• default: false

  Same as disabled in native textarea.

🔒 readOnly

• type: boolean

• default: false

  Prevent editing while still allowing text selection and copying.

📏 maxLength

• type: number

• default: undefined

  Same as maxlength in native textarea.

📥 autoDetectCode

• type: boolean

• default: false

  Auto detect the type of pasted code, only support that copied from vscode.

📝 completions

• type: Array<CompletionSource>

• default: undefined

  Additional completion sources.

  tsx Copy

  import { useMemo, useState } from 'react';
  import { CompletionSource } from '@codemirror/autocomplete';
  import { MdEditor } from 'md-editor-rt';
  import 'md-editor-rt/lib/style.css';

  export default () => {
    const [t, s] = useState('');

    const completions = useMemo<Array<CompletionSource>>(() => {
      return [
        (context) => {
          const word = context.matchBefore(/@\w*/);

          if (word === null || (word.from == word.to && context.explicit)) {
            return null;
          }

          return {
            from: word.from,
            options: [
              {
                label: '@imzbf',
                type: 'text'
              }
            ]
          };
        }
      ];
    }, []);

    return <MdEditor value={t} onChange={s} completions={completions} />;
  };

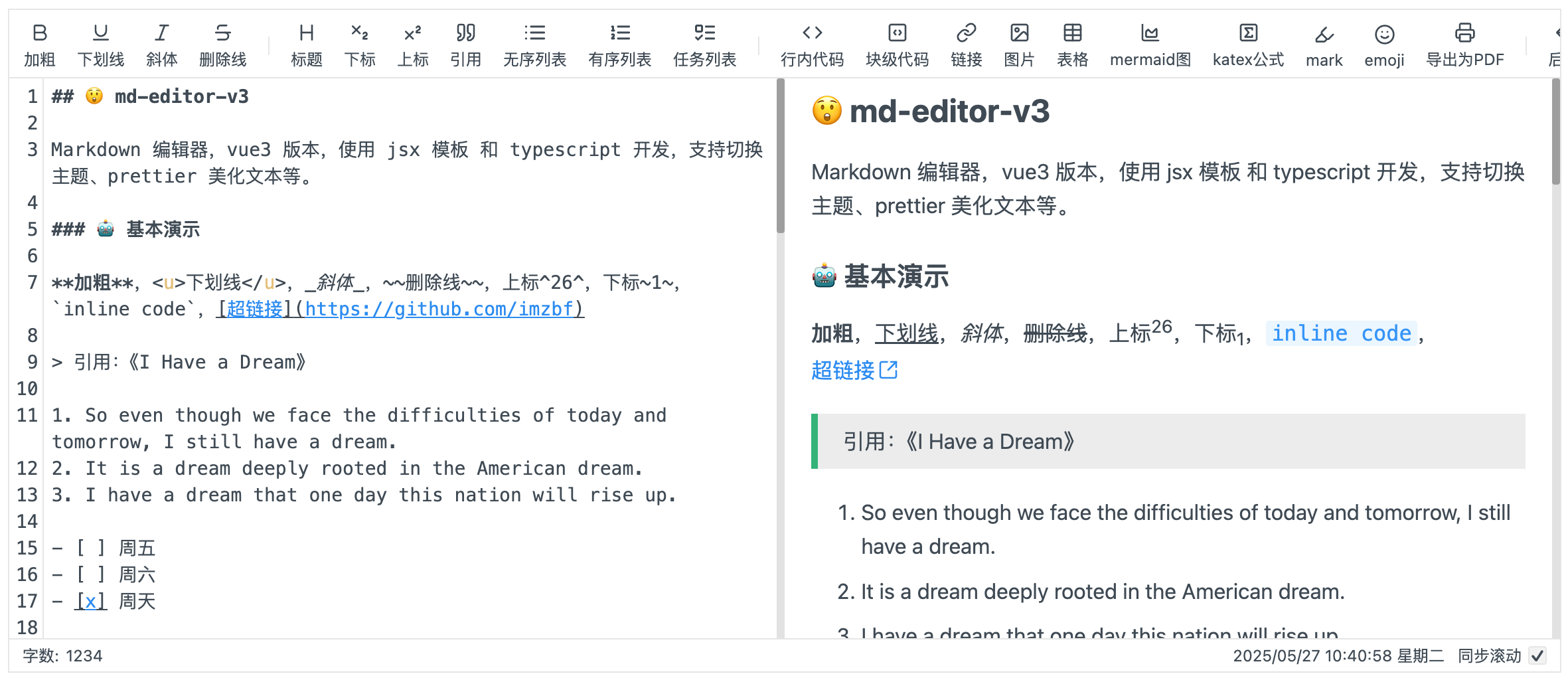

📥 showToolbarName

• type: boolean

• default: false

  Show toolbar name or not

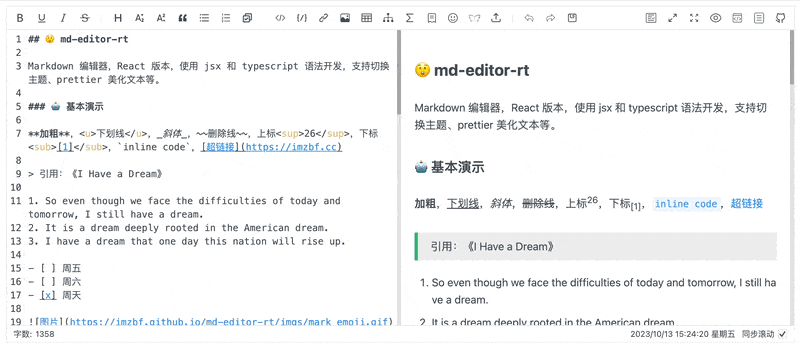

📥 inputBoxWidth

• type: string

• default: '50%'

  Default width of input box

📥 transformImgUrl

• type: (imgUrl: string) => string | Promise<string>

• default: t => t

  Transform image links

🔖 catalogLayout

• type: 'fixed' | 'flat'

• default: 'fixed'

  >=5.3.0, the built-in catalog status: 'fixed' - floats above the content; 'flat' - displays on the right side.

📇 catalogMaxDepth

• type: number

• default: undefined

  >=5.5.0 Controls the maximum depth of the catalog to be displayed.

🧵 MdPreview Events

📞 onChange

• type: (v: string) => void

  Content changed event(bind to oninput of textarea).

🚁 onHtmlChanged

• type: (h: string) => void

  Compile markdown successful event, you can use it to get the html code.

🗒 onGetCatalog

• type: (list: HeadList[]) => void

  Get catalogue of article.

🔃 onRemount

• type: () => void

  >=5.3.0, the 'content re-mount' event allows for correctly retrieving nodes within the content.

🪢 MdEditor Events

Except for the same as MdPreview:

💾 onSave

• type: (v: string, h: Promise<string>) => void

  Saving content event, ctrl+s and clicking button will trigger it.

  jsx Copy

  import { MdEditor } from 'md-editor-rt';
  import 'md-editor-rt/lib/style.css';

  const onSave = (v, h) => {
    console.log(v);

    h.then((html) => {
      console.log(html);
    });
  };

  export default () => <MdEditor onSave={onSave} />;

📸 onUploadImg

• type: (files: Array<File>, callback: (urls: string[] | { url: string; alt: string; title: string }[]) => void) => void

  Uploading picture event, when picture is uploading the modal will not close, please provide right urls to the callback function.

  jsx Copy

  import React, { useState } from 'react';
  import { MdEditor } from 'md-editor-rt';
  import 'md-editor-rt/lib/style.css';

  const onUploadImg = async (files, callback) => {
    const res = await Promise.all(
      files.map((file) => {
        return new Promise((rev, rej) => {
          const form = new FormData();
          form.append('file', file);

          axios
            .post('/api/img/upload', form, {
              headers: {
                'Content-Type': 'multipart/form-data'
              }
            })
            .then((res) => rev(res))
            .catch((error) => rej(error));
        });
      })
    );

    // Approach 1
    callback(res.map((item) => item.data.url));
    // Approach 2
    // callback(
    //   res.map((item: any) => ({
    //     url: item.data.url,
    //     alt: 'alt',
    //     title: 'title'
    //   }))
    // );
  };

  export default () => {
    const [text, setText] = useState('# Hello Editor');

    return <MdEditor value={text} onChange={setText} onUploadImg={onUploadImg} />;
  };

💀 onError

• type: (err: InnerError) => void

  Captures execution error events, currently supports Cropper, fullscreen, prettier instances of unloaded completed operations, inputs exceeding restricted lengths, and mermaid rendering errors.

  ts Copy

  export interface InnerError {
    name: 'Cropper' | 'fullscreen' | 'prettier' | 'overlength' | 'mermaid'; // Component version greater than or equal to 5.4.0 to catch mermaid errors
    message: string;
    data?: any;
    error?: Error;
  }

  jsx Copy

  const onError = (err) => {
    alert(err.message);
  };

  export default () => <MdEditor onError={onError} />;

🐾 onBlur

• type: (event: FocusEvent) => void

  Textarea has lost focus.

  jsx Copy

  const onBlur = (err) => {
    console.log('onBlur', e);
  };

  export default () => <MdEditor onBlur={onBlur} />;

🔖 onFocus

• type: (event: FocusEvent) => void

  Textarea has received focus.

🔖 onInput

• type: (event: Event) => void

  Element gets input.

🔖 onDrop

• type: (event: DragEvent) => void

  The event occurs when a selection is being dragged.

  jsx Copy

  import { useState } from 'react';
  import { MdEditor } from 'md-editor-rt';
  import 'md-editor-rt/lib/style.css';

  const onDrop = (e) => {
    e.preventDefault();
    console.log(e.dataTransfer?.files[0]);
  };

  export default () => {
    const [text, setText] = useState('');
    return <MdEditor value={text} onChange={setText} onDrop={onDrop} />;
  };

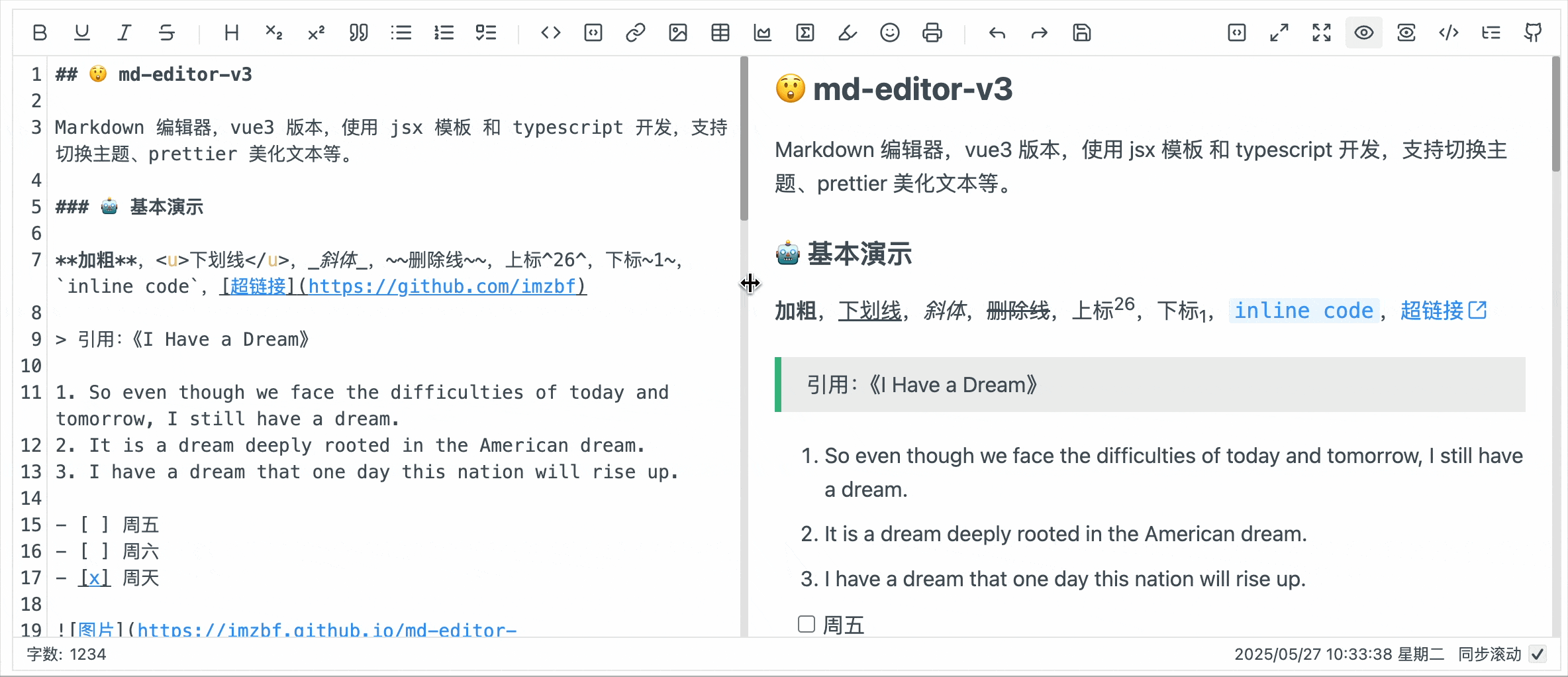

🔖 onInputBoxWidthChange

• type: (width: string) => void

  Event occurs when width of input box has been changed

🤱🏼 Expose

After 2.5.0, Editor exposes several methods on the instance, used to get or change the internal status of the editor.

import React, { useState, useEffect, useRef } from 'react';
import { MdEditor } from 'md-editor-rt';
import type { ExposeParam } from 'md-editor-rt';
//
// import type { ExposePreviewParam } from 'md-editor-rt';
import 'md-editor-rt/lib/style.css';

export default () => {
  const [text, setText] = useState('#Hello Editor');

  const editorRef = useRef<ExposeParam>();

  useEffect(() => {
    editorRef.current?.on('catalog', console.log);
  }, []);

  return <MdEditor ref={editorRef} value={text} onChange={setText} />;
};

👂🏼 on

Get the internal state of the editor, including pageFullscreen, fullscreen, preview, htmlPreview, catalog, etc.

• pageFullscreen

  js Copy

  editorRef.current?.on('pageFullscreen', (status) => console.log(status));

• fullscreen

  js Copy

  editorRef.current?.on('fullscreen', (status) => console.log(status));

• preview

  js Copy

  editorRef.current?.on('preview', (status) => console.log(status));

• previewOnly

  js Copy

  editorRef.current?.on('previewOnly', (status) => console.log(status));

• htmlPreview

  js Copy

  editorRef.current?.on('htmlPreview', (status) => console.log(status));

• catalog

  js Copy

  editorRef.current?.on('catalog', (status) => console.log(status));

💻 togglePageFullscreen

Toggle status of fullscreen within the page.

editorRef.current?.togglePageFullscreen(true);

Switched to the opposite status, without input parameter.

🖥 toggleFullscreen

Toggle status of fullscreen widthin browser.

editorRef.current?.toggleFullscreen(true);

Switched to the opposite status, without input parameter.

📖 togglePreview

Toggle status of preview.

editorRef.current?.togglePreview(true);

Switched to the opposite status, without input parameter.

📖 togglePreviewOnly

Toggle into Preview Only Mode.

editorRef.current?.togglePreviewOnly(true);

Switched to the opposite status, without input parameter.

📼 toggleHtmlPreview

Toggle status of htmlPreview.

editorRef.current?.toggleHtmlPreview(true);

Switched to the opposite status, without input parameter.

🧬 toggleCatalog

Toggle status of catalog.

editorRef.current?.toggleCatalog(true);

Switched to the opposite status, without input parameter.

💾 triggerSave

editorRef.current?.triggerSave();

💉 insert

Manually insert content into textarea.

/**
 * @params selectedText
 */
editorRef.current?.insert((selectedText) => {
  /**
   * @return targetValue    Content to be inserted
   * @return select         Automatically select content, default: true
   * @return deviationStart Start position of the selected content, default: 0
   * @return deviationEnd   End position of the selected content, default: 0
   */
  return {
    targetValue: `${selectedText}`,
    select: true,
    deviationStart: 0,
    deviationEnd: 0
  };
});

🎯 focus

Focus on the textarea.

import type { FocusOption } from 'md-editor-rt';

const option: FocusOption | undefined = 'start';

// Cursor position when focusing on textarea, default: position when it last lost focus
editorRef.current?.focus(option);

type FocusOption =
  | 'start'
  | 'end'
  | {
      // Start position, default cursor position
      rangeAnchor?: number;
      // End position, default cursor position
      rangeHead?: number;
      // Cursor position
      cursorPos: number;
    };

✒️ rerender

Re render the content.

editorRef.current?.rerender();

🔍 getSelectedText

Get the currently selected text.

console.log(editorRef.current?.getSelectedText());

🗑 resetHistory

Clear current history.

🎛 domEventHandlers

Supports listening to all DOM events.

editorRef.current?.domEventHandlers({
  compositionstart: () => {
    console.log('compositionstart');
  }
});

🎛 execCommand

Insert content into the editor via trigger.

editorRef.current?.execCommand('bold');

🔖 getEditorView

Get codemirror instance.

💴 Config Editor

Use config(option: GlobalConfig) to reconfigure markdown-it and so on.

🦪 codeMirrorExtensions

Customize new extensions based on theme and default extensions f codeMirror.

type CodeMirrorExtensions = (
  extensions: Array<CodeMirrorExtension>,
  options: {
    editorId: string;
    theme: Themes;
    keyBindings: Array<KeyBinding>;
  }
) => Array<CodeMirrorExtension>;

interface CodeMirrorExtension {
  /**
   * Only used to provide developers with a basis for distinguishing between different extensions.
   */
  type: string;
  /**
   * CodeMirror extensions
   */
  extension: Extension | ((options: any) => Extension);
  /**
   * A Compartment that wraps the extension
   * Only available for certain extensions—providing the capability to update the extension.
   */
  compartment?: Compartment;
  options?: any;
}

Example: Editor does not render the line number of textarea by default, this extension needs to be manually added

import { config } from 'md-editor-rt';
import { lineNumbers } from '@codemirror/view';

config({
  codeMirrorExtensions(_theme, extensions) {
    return [
      ...extensions,
      {
        type: 'lineNumbers',
        extension: lineNumbers()
      }
    ];
  }
});

Below is the list of built-in extensions:

interface FindTextsContext {
  state: EditorState;
  lineText: string;
  lineNumber: number;
  lineFrom: number;
  lineTo: number;
  defaultTextRegex: RegExp;
}

interface TextShortenerOptions {
  maxLength: number;
  shortenText?: (text: string) => string;
  findTexts?: (context: FindTextsContext) => Array<[number, number]>;
}

🍤 markdownItConfig

Customize extensions, attributes of markdown-it, etc.

type MarkdownItConfig = (
  md: markdownit,
  options: {
    editorId: string;
  }
) => void;

MdEditor and MdPreview initialize markdown-it with { html: false, breaks: true, linkify: true } by default. Raw HTML entered in Markdown, such as <u>, <img>, <br>, and <iframe>, is displayed as text. HTML in image captions is also displayed as text.

The underline toolbar button and shortcut still insert <u>text</u>, which does not render an underline by default. Superscript ^text^, subscript ~text~, task lists, Markdown images, code blocks, math, Mermaid, ECharts, and admonitions generate HTML through Markdown rules or plugins and are unaffected by this option.

To enable raw HTML rendering, configure it before creating an editor or preview component:

import { config } from 'md-editor-rt';

config({
  markdownItConfig(mdit) {
    mdit.set({ html: true });
  }
});

html controls raw HTML parsing, while sanitize processes the final generated HTML. These settings are independent.

Example: Use markdown-it-anchor to render a hyperlink symbol to the right of the title

import { config } from 'md-editor-rt';
import ancher from 'markdown-it-anchor';

config({
  markdownItConfig(mdit) {
    mdit.use(ancher, {
      permalink: true
    });
  }
});

🍤 markdownItPlugins

Select and add built-in plugins to markdown-it.

type MarkdownItPlugins = (
  plugins: Array<MarkdownItConfigPlugin>,
  options: {
    editorId: string;
  }
) => Array<MarkdownItConfigPlugin>;

Example: Modify the class name of the image.

import { config } from 'md-editor-rt';

config({
  markdownItPlugins(plugins) {
    return plugins.map((p) => {
      if (p.type === 'image') {
        return {
          ...p,
          options: {
            ...p.options,
            classes: 'my-class'
          }
        };
      }

      return p;
    });
  }
});

List of built-in Plugins.

Source code for adding plugins

Plugin corresponding source code

🍙 editorConfig

Add more languages, reset mermaid template or delay rendering time

🍚 languageUserDefined

import { config } from 'md-editor-rt';

config({
  editorConfig: {
    languageUserDefined: {
      'en-US': {
        toolbarTips: {
          bold: 'bold',
          underline: 'underline',
          italic: 'italic',
          strikeThrough: 'strikeThrough',
          title: 'title',
          sub: 'subscript',
          sup: 'superscript',
          quote: 'quote',
          unorderedList: 'unordered list',
          orderedList: 'ordered list',
          codeRow: 'inline code',
          code: 'block-level code',
          link: 'link',
          image: 'image',
          table: 'table',
          mermaid: 'mermaid',
          katex: 'formula',
          revoke: 'revoke',
          next: 'undo revoke',
          save: 'save',
          prettier: 'prettier',
          pageFullscreen: 'fullscreen in page',
          fullscreen: 'fullscreen',
          preview: 'preview',
          previewOnly: 'previewOnly',
          htmlPreview: 'html preview',
          catalog: 'catalog',
          github: 'source code'
        },
        titleItem: {
          h1: 'Lv1 Heading',
          h2: 'Lv2 Heading',
          h3: 'Lv3 Heading',
          h4: 'Lv4 Heading',
          h5: 'Lv5 Heading',
          h6: 'Lv6 Heading'
        },
        imgTitleItem: {
          link: 'Add Img Link',
          upload: 'Upload Img',
          clip2upload: 'Clip Upload'
        },
        linkModalTips: {
          linkTitle: 'Add Link',
          imageTitle: 'Add Image',
          descLabel: 'Desc:',
          descLabelPlaceHolder: 'Enter a description...',
          urlLabel: 'Link:',
          urlLabelPlaceHolder: 'Enter a link...',
          buttonOK: 'OK'
        },
        clipModalTips: {
          title: 'Crop Image',
          buttonUpload: 'Upload'
        },
        copyCode: {
          text: 'Copy',
          successTips: 'Copied!',
          failTips: 'Copy failed!'
        },
        mermaid: {
          flow: 'flow',
          sequence: 'sequence',
          gantt: 'gantt',
          class: 'class',
          state: 'state',
          pie: 'pie',
          relationship: 'relationship',
          journey: 'journey'
        },
        katex: {
          inline: 'inline',
          block: 'block'
        },
        footer: {
          markdownTotal: 'Word Count',
          scrollAuto: 'Scroll Auto'
        }
      }
    }
  }
});

🍘 mermaidTemplate

import { config } from 'md-editor-rt';

config({
  editorConfig: {
    // mermaid template
    mermaidTemplate: {
      flow: `flow tempalte`,
      sequence: `sequence template`,
      gantt: `gantt template`,
      class: `class template`,
      state: `state template`,
      pie: `pie template`,
      relationship: `relationship template`,
      journey: `journey template`
    }
  }
});

🍥 renderDelay

import { config } from 'md-editor-rt';

config({
  editorConfig: {
    // delay rendering time(ms)
    renderDelay: 0
  }
});

🍥 zIndex

import { config } from 'md-editor-rt';

config({
  editorConfig: {
    // for modal component
    zIndex: 2000
  }
});

🥠 editorExtensions

Config some dependency libraries, like highlight..

import { config } from 'md-editor-rt';

config({
  editorExtensions: { highlight: { js: 'https://xxx.cc' } }
});

export interface EditorExtensions {
  highlight?: {
    instance?: any;
    js?: string;
    css?: {
      [key: string]: {
        light: string;
        dark: string;
      };
    };
  };
  prettier?: {
    // >= 2.2.0
    prettierInstance?: any;
    parserMarkdownInstance?: any;

    standaloneJs?: string;
    parserMarkdownJs?: string;
  };
  cropper?: {
    instance?: any;
    js?: string;
    css?: string;
  };
  screenfull?: {
    instance?: any;
    js?: string;
  };
  mermaid?: {
    instance?: any;
    js?: string;
    // >=5.4.0, Whether to allow zooming to view mermaid modules
    enableZoom?: boolean;
  };
  katex?: {
    instance?: any;
    js?: string;
    css?: string;
  };
  echarts?: {
    instance?: any;
    js?: string;
    /**
     * Parse an ECharts code block. Starting with v7.x, the default uses
     * JSON5.parse, requires a top-level object, and does not execute JavaScript.
     */
    parseOption?: (
      code: string,
      options: {
        editorId: string;
        element: HTMLElement;
      }
    ) => any;
  };
}

Starting with v7.x, the default editorExtensions.echarts.parseOption uses JSON5.parse and requires the parsed value to be an object. It supports JSON5 data syntax such as unquoted property names, single-quoted strings, comments, and trailing commas, but not functions, variable references, new, or call expressions. A custom parser receives raw Markdown content and must enforce its own trust and validation rules.

🥠 editorExtensionsAttrs

Synchronously add attributes to the CDN link tags, consistent with the type of editorExtensions, with a value type of HTMLElementTagNameMap['tagName'].

import { config } from 'md-editor-rt';

config({
  editorExtensionsAttrs: {
    highlight: {
      js: {
        className: 'hglh-js'
      },
      css: {
        atom: {
          light: {
            className: 'atom-light-css'
          },
          dark: {
            className: 'atom-dark-css'
          }
        }
      }
    }
  }
});

Example of using built-in basic configuration:

import { config, editorExtensionsAttrs } from 'md-editor-rt';

config({
  editorExtensionsAttrs
});

🎨 mermaidConfig

Configure mermaid, Details

import { config } from 'md-editor-rt';
config({
  mermaidConfig(base: any) {
    return {
      ...base,
      logLevel: 'error',
    };
  },
});

🔧 katexConfig

Configure katex, Details

import { config } from 'md-editor-rt';

config({
  katexConfig(base: any) {
    return {
      ...base,
      strict: false,
    };
  },
});

📊 echartsConfig

Configure ECharts options. This function receives the option already parsed and validated by editorExtensions.echarts.parseOption; its return value is passed to ECharts setOption. It does not receive the raw code-block string.

import { config } from 'md-editor-rt';

config({
  echartsConfig(option) {
    return {
      ...option,
      animation: false
    };
  }
});

🪡 Shortcut Keys

🪤 Internal components

On-demand import, eg: import { DropdownToolbar } from 'md-editor-rt'.

const HeaderTool = (props) => {
  console.log('==', props);
  // == { insert: (...)=> {...}, theme: 'light', ... }

  return <NormalToolbar>Content</NormalToolbar>;
};

const toolbars = [0];
const defToolbars = [<HeaderTool key="key" />];

const MyEditor1 = () => {
  return <MdEditor toolbars={toolbars} defToolbars={defToolbars} />;
};

// ===================================

const FooterTool = (props) => {
  console.log('==', props);
  // == { theme: 'light', disabled: false, language: 'zh-CN' }

  return <NormalFooterToolbar>Content</NormalFooterToolbar>;
};

const footers = [0];
const defFooters = [<FooterTool key="key" />];

const MyEditor2 = () => {
  return <MdEditor footers={footers} defFooters={defFooters} />;
};

🐣 NormalToolbar

• props

  • title: string, optional, title of toolbar.
  • disabled: boolean, optional, whether the toolbar is disabled.
  • children: ReactNode, optional, it is usually an icon, which is displayed on the toolbar.
  • trigger: ReactNode, optional, deprecated, as above.

• events

  • onClick: (e: MouseEvent) => void, required.

usage:

import { useCallback, useState } from 'react';
import { MdEditor, NormalToolbar } from 'md-editor-rt';
import 'md-editor-rt/lib/style.css';

/**
 * `insert` will be automatically injected into the component by the editor
 */
const MyToolbar = ({ insert = () => {} }) => {
  const onClick = useCallback(() => {
    insert((selectedText) => {
      /**
       * targetValue    Content to be inserted
       * select         Automatically select content, default: true
       * deviationStart Start position of the selected content, default: 0
       * deviationEnd   End position of the selected content, default: 0
       */
      return {
        targetValue: `==${selectedText}==`,
        select: true,
        deviationStart: 0,
        deviationEnd: 0
      };
    });
  }, [insert]);

  return (
    <NormalToolbar title="mark" onClick={onClick} key="mark-toolbar">
      <svg className="md-editor-icon" aria-hidden="true">
        <use xlinkHref="#icon-mark"></use>
      </svg>
    </NormalToolbar>
  );
};

const toolbars = ['bold', 0, '=', 'github'];
const defToolbars = [<MyToolbar />];

export default () => {
  const [value, setValue] = useState('');

  return <MdEditor value={value} id="md-prev" toolbars={toolbars} defToolbars={defToolbars} onChange={setValue} />;
};

MarkExtension Source Code

🐼 DropdownToolbar

• props

  • title: string, optional, title of toolbar.
  • visible: boolean, required.
  • disabled: boolean, optional, whether the toolbar is disabled.
  • children: ReactNode, optional, it is usually an icon, which is displayed on the toolbar.
  • trigger: ReactNode, optional, deprecated, as above.
  • overlay: ReactNode, required, content of dropdown box.

• events

  • onChange: (visible: boolean) => void, required.

usage:

import { useCallback, useState } from 'react';
import { MdEditor, DropdownToolbar } from 'md-editor-rt';
import 'md-editor-rt/lib/style.css';

/**
 * `insert` will be automatically injected into the component by the editor
 */
const MyToolbar = ({ insert = () => {} }) => {
  const [visible, setVisible] = useState(false);

  const onClick = useCallback(() => {
    insert((selectedText) => {
      /**
       * targetValue    Content to be inserted
       * select         Automatically select content, default: true
       * deviationStart Start position of the selected content, default: 0
       * deviationEnd   End position of the selected content, default: 0
       */
      return {
        targetValue: `==${selectedText}==`,
        select: true,
        deviationStart: 0,
        deviationEnd: 0
      };
    });
  }, [insert]);

  return (
    <DropdownToolbar
      visible={visible}
      onChange={setVisible}
      overlay={
        <ul>
          <li onClick={onClick}>option 1</li>
          <li>option 2</li>
        </ul>
      }
      key="emoji-toolbar"
    >
      <svg className="md-editor-icon" aria-hidden="true">
        <use xlinkHref="#icon-emoji"></use>
      </svg>
    </DropdownToolbar>
  );
};

const toolbars = ['bold', 0, '=', 'github'];
const defToolbars = [<MyToolbar key="key" />];

export default () => {
  const [value, setValue] = useState('');

  return <MdEditor value={value} id="md-prev" toolbars={toolbars} defToolbars={defToolbars} onChange={setValue} />;
};

EmojiExtension Source Code

🦉 ModalToolbar

• props

  • title: string, optional, title of toolbar.
  • modalTitle: string, optional, title of the Modal.
  • visible: boolean, required, visibility of Modal.
  • width: string, optional, width of Modal, default auto.
  • height: string, same as width.
  • showAdjust: boolean, optional, visibility of fullscreen button.
  • isFullscreen: boolean, optional, fullscreen state of the Modal.
  • trigger: ReactNode, required, it is usually an icon, which is displayed on the toolbar.
  • children: any, optional, content of Modal.
  • className: string, ^4.16.8, optional.
  • style: CSSProperties, ^4.16.8, optional.
  • showMask: boolean, ^4.16.8, optional, whether to display the mask layer, default true.
  • disabled: boolean, optional, whether the toolbar is disabled.

• events

  • onClick: (e: MouseEvent) => void, required.
  • onClose: () => void, required, close event.
  • onAdjust: (val: boolean) => void, optional, fullscreen button click event.

import { useCallback, useState } from 'react';
import { MdEditor, ModalToolbar } from 'md-editor-rt';
import 'md-editor-rt/lib/style.css';

/**
 * `insert` will be automatically injected into the component by the editor
 */
const MyToolbar = ({ insert = () => {} }) => {
  const [visible, setVisible] = useState(false);
  const [isFullscreen, setIsFullscreen] = useState(false);

  const onClick = useCallback(() => {
    setVisible(true);
  }, []);

  const onClose = useCallback(() => {
    setVisible(false);
  }, []);

  const onAdjust = useCallback(() => {
    setIsFullscreen((i) => !i);
  }, []);

  const insertHandler = useCallback(() => {
    insert((selectedText) => {
      /**
       * targetValue    Content to be inserted
       * select         Automatically select content, default: true
       * deviationStart Start position of the selected content, default: 0
       * deviationEnd   End position of the selected content, default: 0
       */
      return {
        targetValue: `==${selectedText}==`,
        select: true,
        deviationStart: 0,
        deviationEnd: 0
      };
    });
  }, [insert]);

  return (
    <ModalToolbar
      visible={visible}
      isFullscreen={isFullscreen}
      showAdjust
      title="hover-title"
      modalTitle="modalTitle"
      width="870px"
      height="600px"
      onClick={onClick}
      onClose={onClose}
      onAdjust={onAdjust}
      trigger={
        <svg className="md-editor-icon" aria-hidden="true">
          <use xlinkHref="#icon-read"></use>
        </svg>
      }
    >
      <div
        style={{
          height: '100%',
          padding: '20px',
          overflow: 'auto'
        }}
      >
        <button onClick={insertHandler}>click me</button>
      </div>
    </ModalToolbar>
  );
};

const toolbars = ['bold', 0, '=', 'github'];
const defToolbars = [<MyToolbar key="key" />];

export default () => {
  const [value, setValue] = useState('');
  return <MdEditor value={value} id="md-prev" toolbars={toolbars} defToolbars={defToolbars} onChange={setValue} />;
};

ExportPDF Source Code

🐻 MdCatalog

• props

  • editorId: string, required, editor's id, used to register listening events.
  • className: string, optional.
  • mdHeadingId: MdHeadingId, optional, same as editor.
  • scrollElement: string | HTMLElement, optional, it is an element selector when its type is string. When using MdPreview, it is usually set to document.documentElement. ⚠️ This element must be positioned (e.g., relative, absolute, or fixed) and have scrollable content.
  • style: CSSProperties, optional, inline style for the catalog root element.
  • theme: 'light' | 'dark', optional, provide it when you want to change theme online, it is the same as Editor theme.
  • offsetTop: number, optional, highlight current item of catalogs when title is offsetTop pixels from the top, default 20.
  • scrollElementOffsetTop: number, optional, offsetTop of the scroll container, default 0.
  • isScrollElementInShadow: boolean, optional, whether the scroll container is inside Shadow DOM, default false.
  • syncWith: 'editor' | 'preview', optional, synchronize with the editor or preview area, default 'preview'.
  • catalogMaxDepth: number, ^5.5.0, optional, controls the maximum depth of the catalog to be displayed.

• events

  • onClick: (e: MouseEvent, t: TocItem) => void, optional.
  • onActive: (heading: HeadList | undefined, activeElement: HTMLDivElement) => void, optional; the second argument is the active catalog item element.

usage:

import { MdPreview, MdCatalog } from 'md-editor-rt';
import 'md-editor-rt/lib/preview.css';

const editorId = 'my-editor';

export default () => {
  const [state] = useState({
    text: '# heading',
    scrollElement: document.documentElement
  });

  return (
    <>
      {/* Ensure that the editorId is the same */}
      <MdPreview id={editorId} value={state.text} />
      <MdCatalog editorId={editorId} scrollElement={state.scrollElement} />
    </>
  );
};

🛸 MdModal

It is usually used in conjunction with DropdownToolbar.

• props

  • title: ReactNode, optional, title of Modal.
  • visible: boolean, optional, visibility of Modal.
  • width: string, optional, width of Modal, default auto.
  • height: string, same as width.
  • showAdjust: boolean, optional, visibility of fullscreen button.
  • isFullscreen: boolean, optional, fullscreen state of the Modal.
  • children: any, optional, content of Modal.
  • className: string, optional.
  • style: CSSProperties, optional.
  • showMask: boolean, ^4.16.8, optional, whether to display the mask layer, default true.

• events

  • onClose: () => void, optional, close event.
  • onAdjust: (val: boolean) => void, optional, fullscreen button click event.

import { useCallback, useState } from 'react';
import { MdEditor, DropdownToolbar, MdModal } from 'md-editor-rt';
import 'md-editor-rt/lib/style.css';

/**
 * `insert` will be automatically injected into the component by the editor
 */
const MyToolbar = () => {
  const [visible, setVisible] = useState(false);
  const [mVisible, setMvisible] = useState(false);

  const onClick = useCallback(() => {
    setMvisible(true);
  }, []);

  const onClose = useCallback(() => {
    setMvisible(false);
  }, []);

  return (
    <>
      <DropdownToolbar
        visible={visible}
        onChange={setVisible}
        overlay={
          <ul>
            <li onClick={onClick}>option 1</li>
            <li>option 2</li>
          </ul>
        }
        key="emoji-toolbar"
      >
        <svg className="md-editor-icon" aria-hidden="true">
          <use xlinkHref="#icon-emoji"></use>
        </svg>
      </DropdownToolbar>
      <MdModal title="title" visible={mVisible} onClose={onClose}>
        Content, Content
      </MdModal>
    </>
  );
};

const defToolbars = [<MyToolbar key="key" />];

export default () => {
  const [value, setValue] = useState('');

  return (
    <MdEditor
      value={value}
      id="md-prev"
      toolbars={['bold', 0, '=', 'github']}
      defToolbars={defToolbars}
      onChange={setValue}
    />
  );
};

🛸 NormalFooterToolbar

Footer toolbar components

• props

  • disabled: boolean, optional, whether the footer toolbar is disabled.

• events

  • onClick: (e: MouseEvent) => void, optional, toolbar was clicked.

• slots

  • children: ReactNode, required, content.

import { MdEditor, NormalFooterToolbar } from 'md-editor-rt';

const FooterTool = (props) => {
  return <NormalFooterToolbar>Content</NormalFooterToolbar>;
};

const footers = [0];
const defFooters = [<FooterTool key="key" />];

export default () => {
  return <MdEditor footers={footers} defFooters={defFooters} />;
};

🪤 Internal Configuration

import { allToolbar, allFooter, zh_CN, en_US, editorExtensionsAttrs, prefix } from 'md-editor-rt';

console.log(allToolbar, allFooter, zh_CN, en_US, editorExtensionsAttrs, prefix);

📦 Internal Tools

🧹 clearSideEffects

>=5.0.0

Clear the side effects brought by the component, for example: links embedded using CDN. To ensure that multiple components can run correctly., the component will not actively remove these when it is unmounted.

import { clearSideEffects } from 'md-editor-rt';

clearSideEffects();

XSSPlugin

>=5.0.0

Example: Add XSS extension

✍️ Edit This Page

doc-en-US
